Oneplus 3T, The phone I love the most.

Basic Parameters

Dimensions:

152.7 x 74.7 x 7.35 mm

Weight:

158 g

Material:

Anodized aluminum

Color:

Gunmetal / Soft Gold

Operating System:

OxygenOS based on Android™ Marshmallow

---

CPU:

Qualcomm^® Snapdragon™ 821
Quad Core, Kryo™: 2x 2.35 GHz, 2x 1.6 GHz

GPU:

Adreno™ 530

RAM:

6GB LPDDR4

Storage:

64GB / 128GB UFS 2.0* Please note that the Soft Gold version is only available in 64GB.

Sensors:

Fingerprint sensor, Hall sensor,
Accelerometor, Gyroscope,
Proximity sensor,
Ambient light sensor and Electronic Compass

---

Ports:

USB 2.0, Type-C
Dual nano-SIM slot
3.5 mm audio jack

---

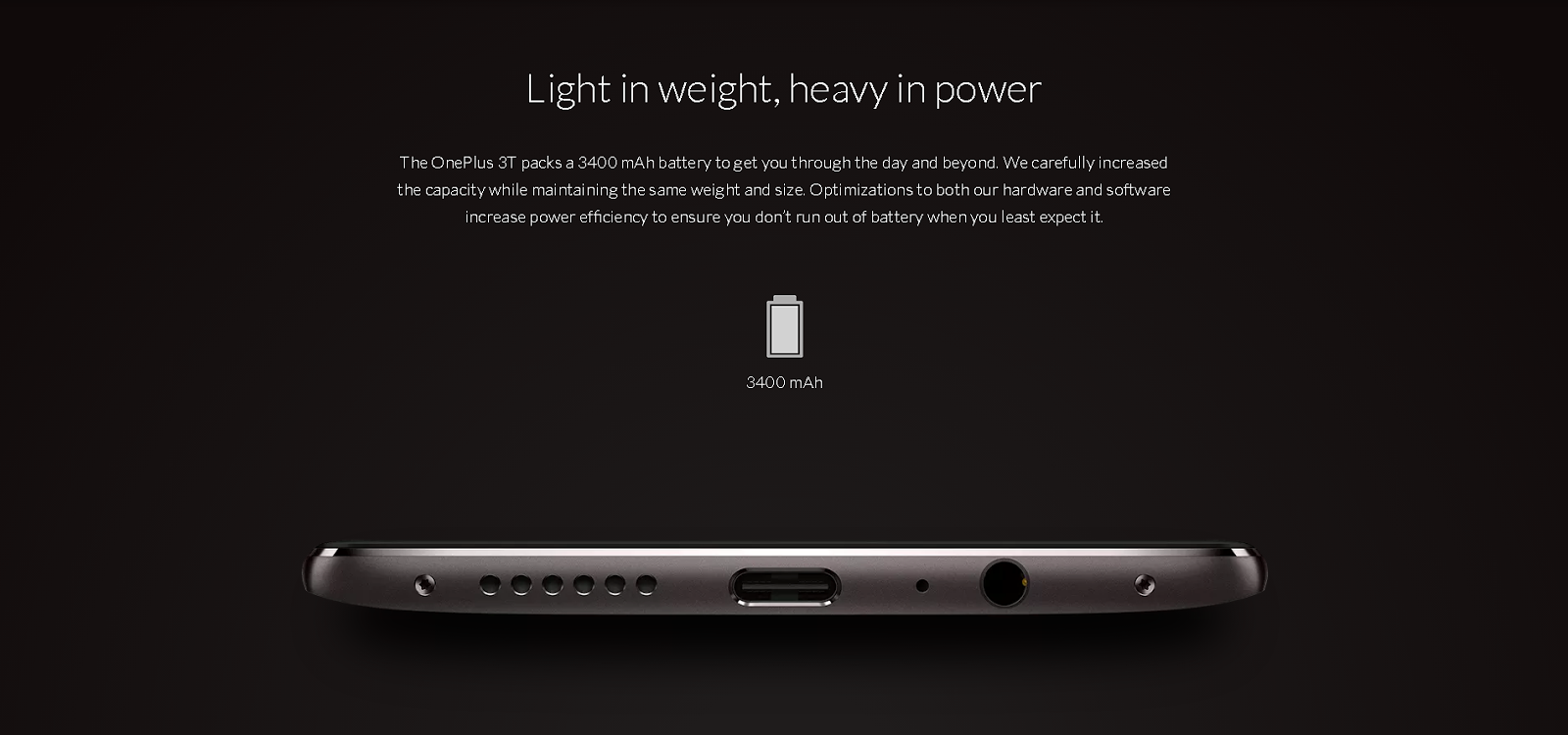

Battery:

3,400 mAh (non-removable)
Dash Charge (5V, 4A)

---

Buttons:

Hardware keys and on-screen navigation support

SAR Values:

Standard: FCC
Near the ear: 0.995W/kg(1g)
Worn on the body: 0.645W/kg(1g)

Other:

Alert Slider
Custom icon packs
Gesture Control (Display On + Display Off)
OnePlus Shelf
Vibration motor
RGB LED notification light

---

Connectivity

Connectivity

Network:

GSM: 850, 900, 1800, 1900 MHz
4G LTE (Cat. 6)

---

North America model:

WCDMA: Bands 1/2/4/5/8
FDD-LTE: Bands 1/2/4/5/7/8/12/17/30
CDMA EVDO: BC0

---

Europe / Asia model:

WCDMA: Bands 1/2/5/8
FDD-LTE: Bands 1/3/5/7/8/20
TDD-LTE: Bands 38/40

---

China model:

WCDMA: Bands 1/2/5/8
FDD-LTE : Bands 1/3/5/7/8
TDD-LTE: Bands 38/39/40/41
TD-SCDMA : Bands 34/39
CDMA EVDO: BC0

---

Wi-Fi:

Wi-Fi 802.11 a/b/g/n/ac

Bluetooth:

Bluetooth^® 4.2

NFC:

NFC Enabled

Positioning:

GPS, GLONASS, BeiDou

---

Audio

Audio

Speakers:

Bottom-facing speaker

Microphones:

Dual-microphone with noise cancellation

Features:

OnePlus Music

Technology:

Dirac HD Sound^®

---

Display

Display

Size:

5.5 inch

Resolution:

1080p Full HD (1920 x 1080 pixels)
401 ppi

Bezel:

0.755 mm

Cover Glass:

Corning^® Gorilla^® Glass 4

---

Type:

Optic AMOLED

Aspect Ratio:

16 : 9

---

---

Features:

Night Mode Display
Light / Dark Theme
Accent Colors

---

Rear Camera

Rear Camera

Sensor:

Sony IMX 298 Sensor
16 MP
1.12 µm

OIS:

Yes

EIS:

Yes

Autofocus:

PDAF

Aperture:

f/2.0

Video:

4K resolution video at 30fps

Slow Motion:

720p video at 120fps

RAW Image support:

Yes

Lens Cover:

Sapphire crystal lens cover

---

Features:

Auto-HDR, Dynamic Denoise,
Manual Control,
HQ

---

Front Camera

Front Camera

Sensor:

Samsung 3P8SP Sensor
16 MP
1.0 µm

---

EIS:

Yes

Autofocus:

Fixed Focus

Aperture:

f/2.0

Video:

1080p video at 30fps

Auto selfie:

Smile Capture

---

Multimedia

Multimedia

Audio Supported Formats:

Playback: MP3, AAC, AAC+, WMA (v9 and v10),
AMR-NB, AMR-WB, WAV, FLAC, WAV, OGG
Recording: WAV AAC AMR EVRC QCELP

Video Supported Formats:

Playback: HEVC (H.265), H.264, MPEG-4, DivX,
Xvid, MPEG-2, MP4, MOV, 3GP, AVI, MKV, ASF
Recording: AVC

Image Supported Formats:

Playback: JPEG, PNG, BMP, GIF
Output: JPEG

---

In The Box

In The Box

1x OnePlus 3T

1x Screen Protector (pre-applied)

1x Dash Type-C Cable

1x Dash Power Adapter

1x SIM Tray Ejector

1x Quick Start Guide

1x Safety Information
